ECOPOD-Edge
ECOPOD-Edge Advanced Wastewater Treatment Units are an innovative approach to onsite wastewater disposal where nitrogen reduction is required. The ECOPOD-Edge technology has been tested under NSF/ANSI 40 and 245 with an average nitrogen reduction of greater than 79% exceeding Class 1 requirements with an average effluent quality 9 mg/L CBOD, 8 mg/L TSS, and 11 mg/L Total Nitrogen.
Find a Distributor › Contact an Expert › Manuals, Guides & CAD Details ›
Specifications:
ECOPOD-Edge Advanced Wastewater Treatment Units are manufactured to specifications according to wastewater flow requirements available in the following models:
Features:

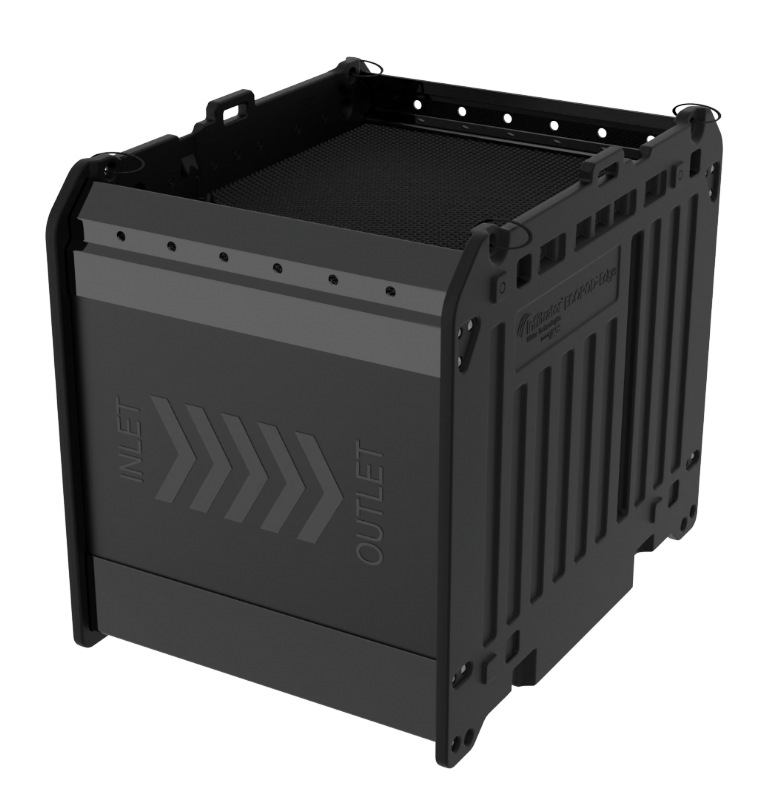

- ECOPOD-Edge uses a fixed film bioreactor with structured media to promote robust bacterial growth for effective wastewater treatment.

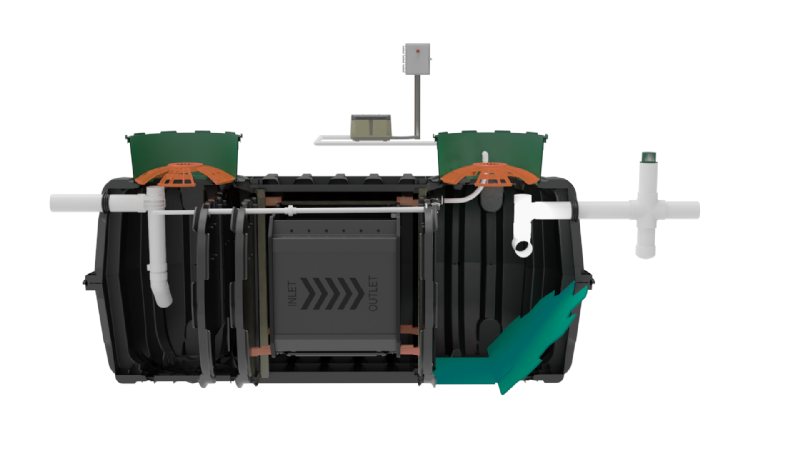

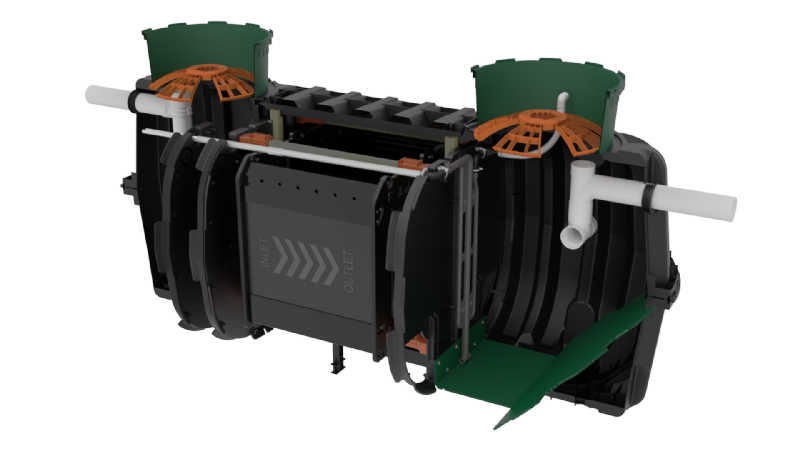

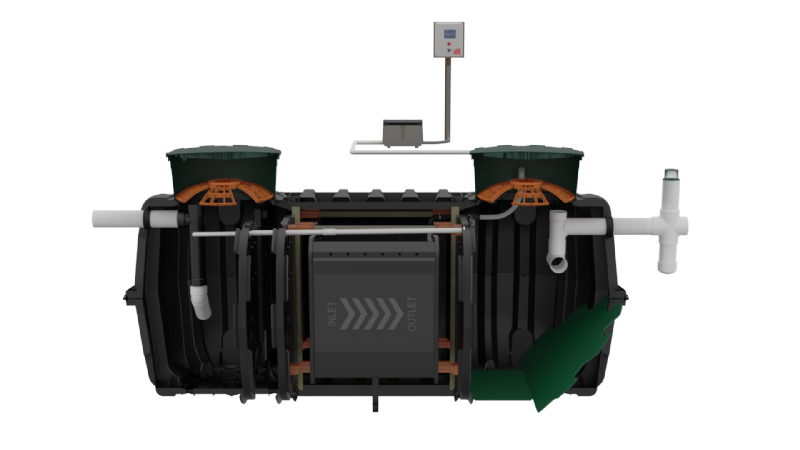

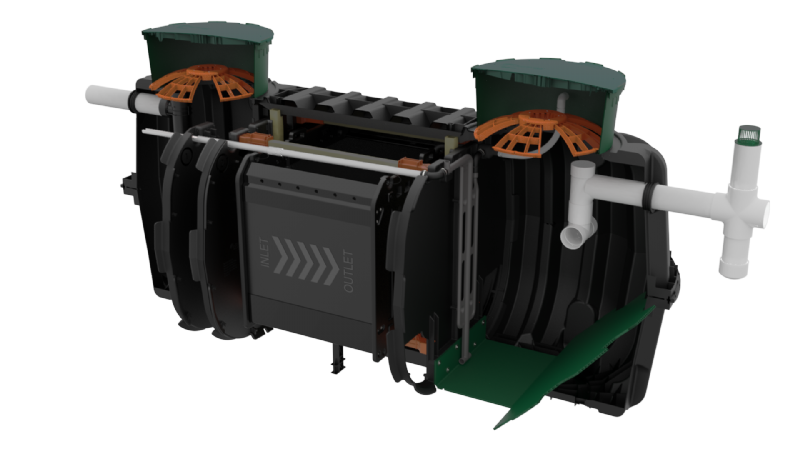

- It can be installed in a single CM-1060 Infiltrator tank for flexible site design.
- A single aerator is used to provide oxygen to the bacteria as well as to recirculate flow from the treatment chamber to the pre-treatment chamber.
- Engineered “Edge Zone” design creates anoxic subzones within the aerobic treatment chamber, supporting efficient nitrogen removal.
- ECOPOD-Edge units significantly reduce CBOD, TSS, and Total Nitrogen (TN) in the wastewater.
- Certified under NSF/ANSI 40 and 245 for high-level residential wastewater treatment performance.
Benefits:
- Fixed film treatment offers long-term reliability with minimal risk of clogging or fouling.
- Internal recirculation supports nitrogen removal by allowing conversion of nitrates into inert nitrogen gas.
- Compact 500 GPD model fits in a 1000-gallon CM-1060 Infiltrator tank — ideal for sites with limited space.
- High performance advanced treatment unit certified under NSF/ANSI 40 and 245.
- Built for durability and resilience using proven Infiltrator tank technology
- Low sludge production reduces long-term maintenance and service needs.
- Cost-effective life cycle with minimal moving parts and low energy consumption
- Supported by a dedicated team of engineers for system design, permitting, and installation assistance.
Download the Installation, Operations and Maintenance Manual ›
