Quick5 Standard Chamber

Quick5 Standard
Quick5 Standard Logo

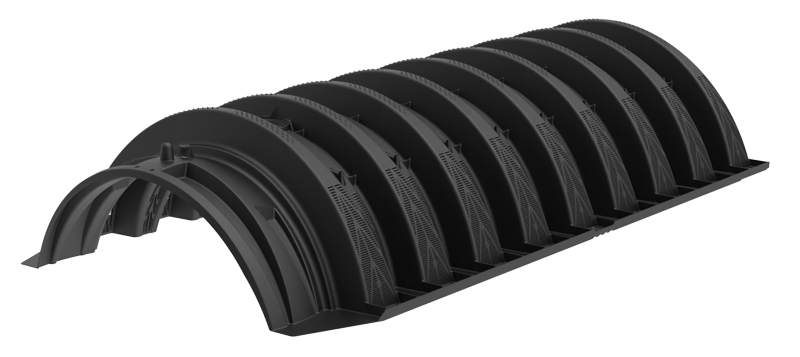

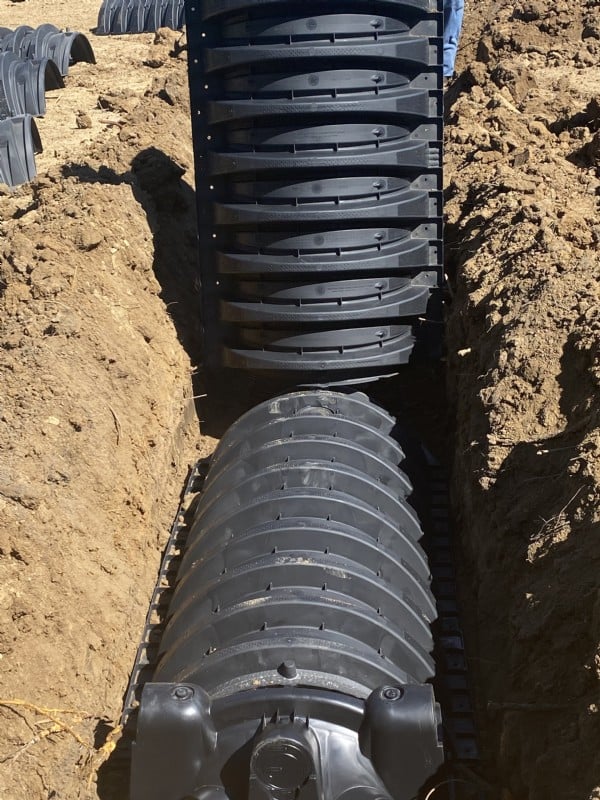

The Quick5® Standard Chamber fits in a 36” wide trench and is ideal for curved or straight systems. It features the patented Contour Swivel Connection™ which permits turns up to 10°, right or left. The MultiPort™ endcap allows multiple piping options and eliminates pipe fittings. The chamber’s five-foot length provides optimal installation flexibility.

Find a Distributor › Contact an Expert › Manuals, Guides & CAD Details ›

Specifications:

Size
34"W x 65"L x 12"H
(864 mm x 1651 mm x 305 mm)

Effective Length
60" (1524 mm)

Louver Height
8" (203 mm)

Storage Capacity
56.5 gal (215 L)

Invert Height
8" (203 mm)

Benefits:

  • Advanced contouring connections swivel up to 10°, right or left
  • Latching mechanism allows for quick installation
  • Less chambers needed for faster installation
  • Supports wheel loads of 16,000 lbs/axle with 12" of cover
  • Certified by the International Association of Plumbing and Mechanical Officials (IAPMO)
