CM-1060 Tank

CM-1060 Logo

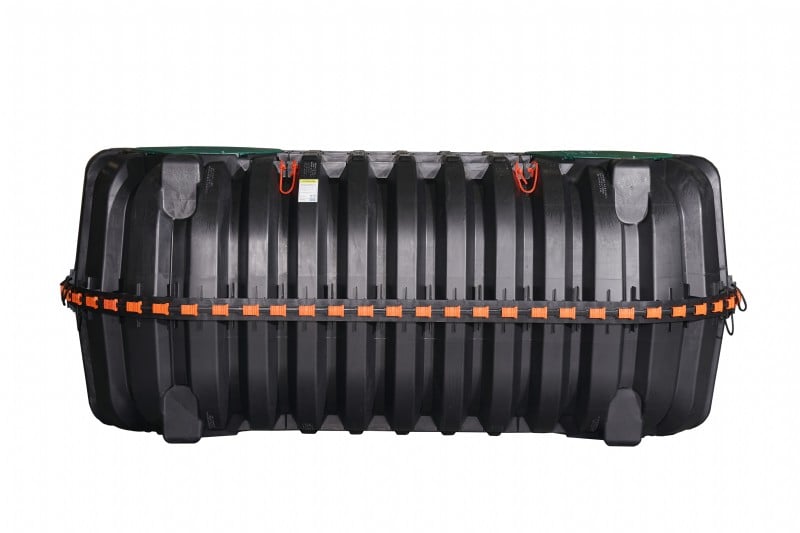

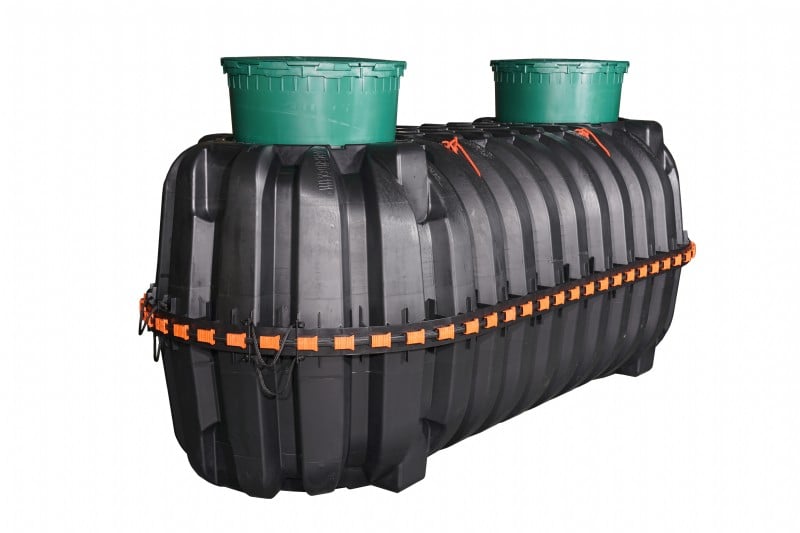

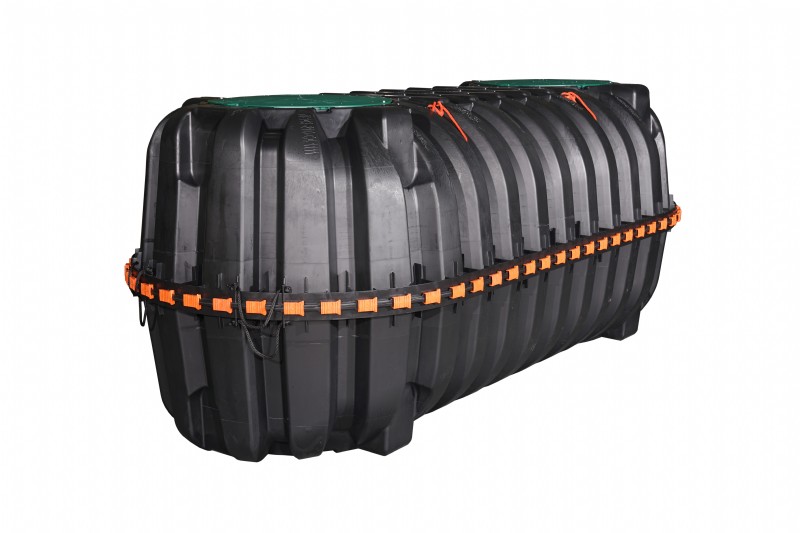

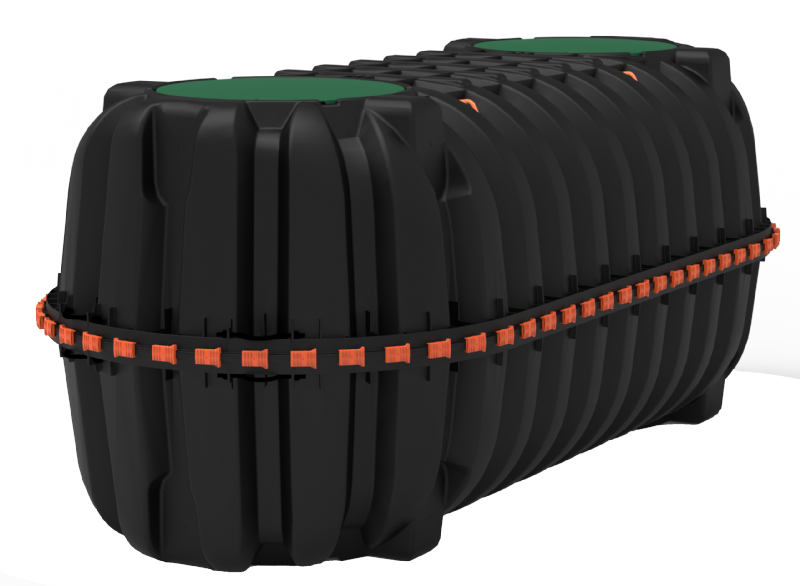

The Infiltrator CM-1060 is a lightweight, strong and durable septic tank. This watertight tank design is offered with Infiltrator’s line of custom-fit risers and heavy-duty lids. Infiltrator compression molded tanks provide a revolutionary improvement in thermoplastic septic tank design, offering exceptional long-term strength and watertightness.

Do not install the tank in vehicular traffic areas. The tank is designed for non-traffic applications.

All CM-1060 tanks are fully assembled and available through our network of certified Infiltrator distributors.

Find a Distributor › Contact an Expert › Manuals, Guides & CAD Details ›


61.7"W x 134"L x 54.5"H
(1567 mm x 3409 mm x 1384 mm)

Two Access Ports
Each 24" (610 mm)

331 lbs (151 kg)

Total Capacity
1309 gal (4956 L)

Working Capacity
1111 gal (4207 L)

Burial Depth
Minimum 6" (152 mm)
Maximum 48" (1219 mm)


  • Strong compression molded polypropylene construction
  • Lightweight plastic construction and inboard lifting lugs allow for easy delivery and handling
  • Integral heavy-duty green lids that interconnect with EZsnap risers and pipe riser solutions
  • Structurally reinforced access ports eliminate distortion during installation and pump-outs
  • Reinforced structural ribbing and fiberglass bulkheads offer additional strength
  • Can be installed with 6” to 48” (152 to 1,219 mm) of cover
  • Can be pumped dry during pump-outs
  • Suitable for use as a septic tank, pump tank, or rainwater (non-potable) tank
  • No special water filling requirements are necessary
  • The tank may be backfilled with suitable native soil. See installation instructions for guidance.

Download the Cutsheet ›

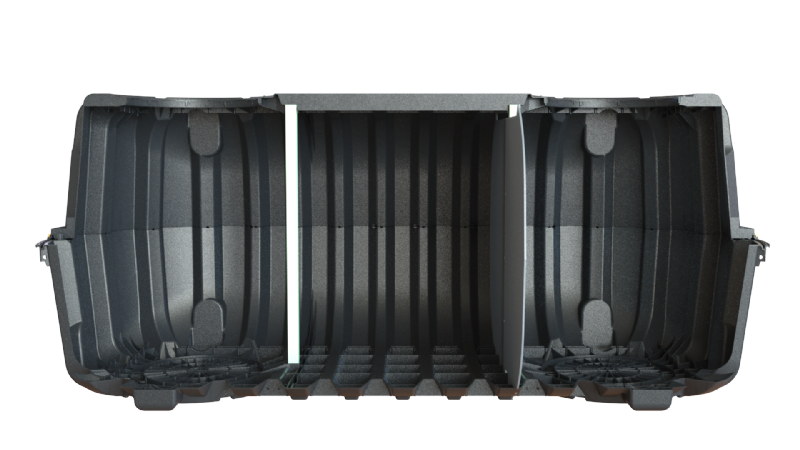

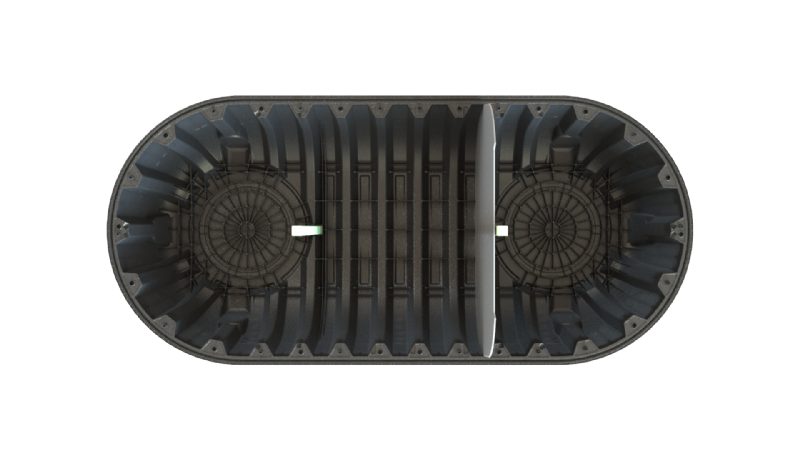

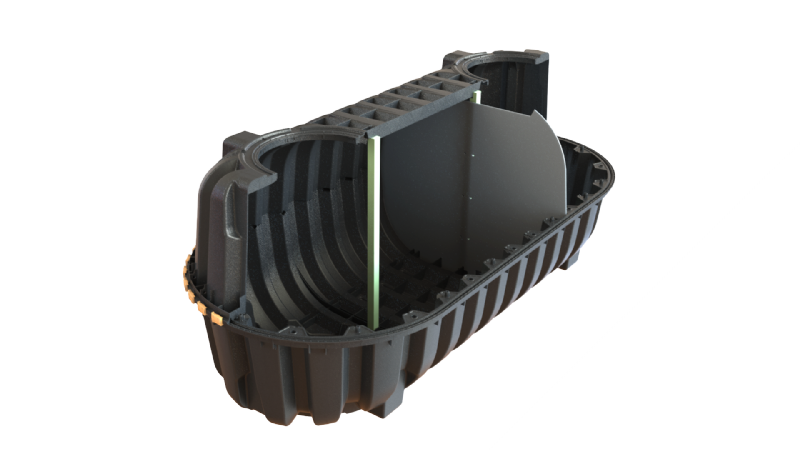

Download the Cutaway ›
